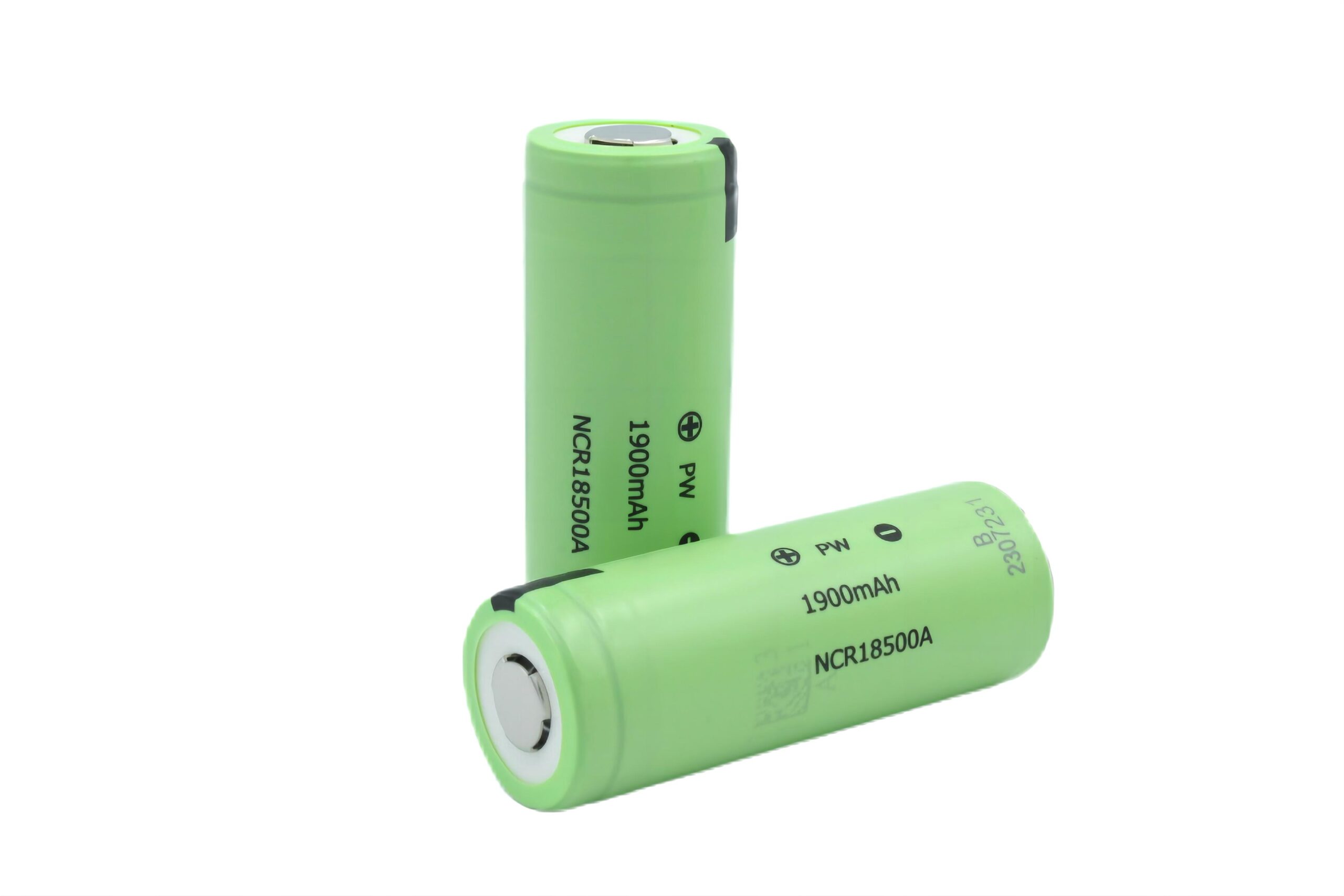

18500 1900mAh Panasonic NCR18500A rechargeable lithium-ion battery cell
Widely used in different fields, such as IOT, LED lighting, Remote control, Security device, Medical equipment, Beauty device and Home appliance…etc
| No. | Item | Specification |
|---|---|---|
| 1 | Model | NCR18500A |
| 2 | Rated Capacity | 2040mAh |
| 3 | Minimum Capacity | 1900mAh |
| 4 | Nominal Voltage | 3.6V |
| 5 | Charging Method | CC-CV (Constant Current – Constant Voltage) |
| 6 | Charging Voltage | 4.20 ± 0.03V |
| 7 | Standard Charging Current | 1350mA |
| 8 | Standard Charging Time | 180 minutes |
| 9 | Discharge Cut-off Voltage | 2.5V |
| 10 | Max Continuous Discharge Current | 3880mA |
| 11 | Weight | 34.2g |
| 12 | Dimensions | Diameter 18.50mm × Length 49.50mm |
| 13 | Operating Temperature | Charging: 0 ~ +40°C Discharging: -20 ~ +60°C Storage: -20 ~ +50°C |
